| Category | Descriptions | |

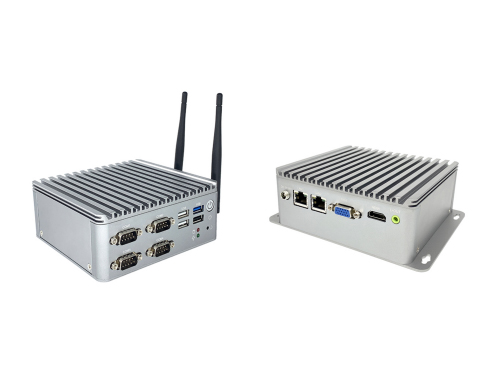

| Model | No. | YL-8506 |
| Nucleus Module | Intel? Celeron? Processor J1900 (Quad Core 2M Cache, up to 2.42 GHz) | |
| CPU | Intel? Celeron? Processor N2930 (Quad Core 2M Cache, up to 2.16GHz) | |
| Intel? ATOM? Processor E3845 (Quad Core 2M Cache, 1.91GHz) | ||
| Chipset | Intel?Bay Trail D/I/M SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR3L 1333MHZ 4GB/8GB, Optional | |
| Storage |
1*mSATA slot (32G/64G/128G/256GB/512 SSD), 1*SATA bay (7+15P 500G-6T 2.5" HDD), optional | |
| Graphic | Integrated Intel?Bay Trail D/I/M SOC | |
| Network |
2*Intel? Ethernet Controller I211AT 1000M lan (Support Intel? Ethernet Controller I210 Series) | |
| Audio | Realtek ALC892 | |
| I/O | Lan | 2*RJ45 (Gigabit Ethernet) |
| USB | 3*USB2.0, 1*USB3.0 | |
| Display | 1*VGA, 1*HDMI | |
| WIFI | 1*WiFi module with 2 antennas (Optional) | |
| COM | 4*COM (RS232) | |
| Button | 1*Power Button | |
| Audio | 1*Line-out | |
| Expansion | 1*mini-PCIe (support WiFi, Bluetooth & 4G module) | |
| OS | Operating System | Windows 7/8/10, Linux |
| Structure | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | VESA bracket (Optional) | |
| Dimensions | 134.0 * 124.0 * 36.0mm / 5.28 * 4.88 * 1.42 Inch (WxDxH) | |
| Weight | 0.537kg | |
| Power | DC In | DC 9-24V power supply(lockable jack) and AC power adapter |
| Temperature & Humidity | Working Temp. | -20°C ~ 65°C (-4°F ~ 149°F) |
| Storage Temp. | -40°C ~ 80°C (-40°F ~ 176°F) | |
| Working Humidity | 10% - 95% @40°C non-condensing | |
| Cert. | Safety | CE, FCC, RoHS |
| Packing | Items |
pc, power adapter, power cord, CD driver, VESA bracket & 2 antennas (Optional) |
