| Category | Descriptions | |

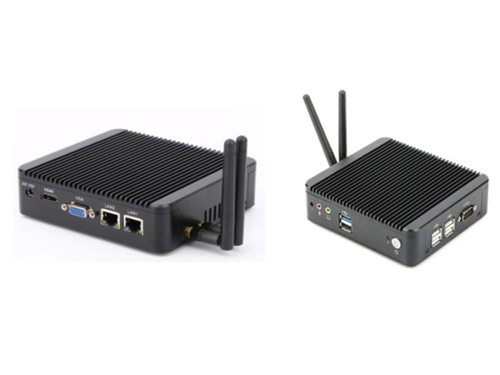

| 型號Model | No. | YL-8501 |
| 核心模塊 Nucleus Module | CPU | Intel? Celeron? Processor J1900 (Quad Core 2M Cache, up to 2.42 GHz) |
| Intel? Celeron? Processor N2930 (Quad Core 2M Cache, up to 2.16GHz) | ||
| Intel? ATOM? Processor E3845 (Quad Core 2M Cache, 1.91GHz) | ||
| Chipset | Intel?Bay Trail D/I/M SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR3L 1333MHZ 2GB/4GB /8GB | |
| Storage |
1*mSATA slot(32G/64G/128G/256GB/512 SSD), 1*SATA bay(7+15P 500G-6T 2.5" HDD), optional | |
| Graphic | Integrated Intel?Bay Trail D/I/M SOC | |
| Network |
2*Intel? Ethernet Controller I211AT 1000M Lan (Support Intel? Ethernet Controller I210 Series) | |
| Audio | Realtek ALC892 | |
| 接口I/O | Lan | 2*RJ45 (Gigabit Ethernet) |
| USB | 5*USB2.0, 1*USB3.0 | |
| Display | 1*VGA, 1*HDMI | |
| WIFI | 1*WiFi module with 2 antennas(Optional) | |
| COM | 1*COM(RS232) | |
| Button | 1*Power Button | |
| SPK | 1* Audio-out | |
| MIC | 1*Mic-in | |
| Expansion | 1*mini-PCIe(support WiFi and Bluetooth) | |
| 系統OS | Operating System | Windows 7/8/10, Linux |
| 機構 Structure | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | VESA bracket(Optional) | |
| Dimensions | 134 * 124 * 38mm / 5.28 * 4.88 * 1.5 Inch (WxDxH) | |
| Weight | 0.54KG(N.W.) | |
| 電源Power | DC In | DC 12V-IN power supply and AC power adapter |
| 溫/濕度 Temperature & Humidity | Working Temp. | -40°C~ 65°C (-40°F~149°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 10% - 95% relative humidity(Non-condensing) | |
| 認證Cert. | Safety | CE, FCC, RoHS |
| 包裝Packing | Items |
pc, power adapter, power cord, CD driver, VESA bracket & 2 antennas(Optional) |
