| Category | Descriptions | |

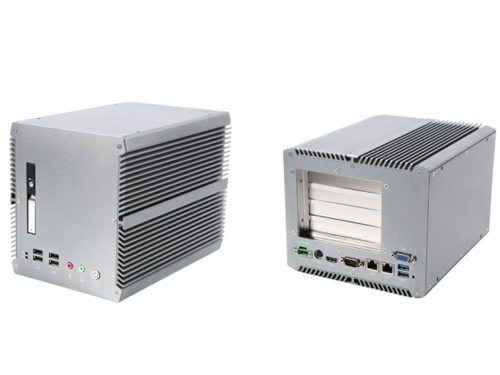

| Model(型號) | No. | YL-6401 |
| 核心模塊 Nucleus Module | CPU | Intel? Celeron? Processor 3855U (Dual Core Dual Threads 2M Cache, 1.6 Ghz) |
| Intel? Core? i5-6200U Processor (Dual Core Quad Threads 3M Cache, Max 2.8 Ghz) | ||
| Chipset | Intel? Skylake ULT SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR4 2133MHZ 4GB , up to 8GB | |
| Storage | 1*mSata slot (32G/64G/128G/256G SSD Optional) | |
|
1*SATA bay with key-lock protection & LED indicator (for 2.5" removable SSD/HDD ),optional | ||
| Graphic | Integrated Intel? HD Graphics 510/520 | |
| Network |
2*Intel? Ethernet Controller I 211AT 1000M lan (Support Intel? Ethernet Controller I210 Series) | |
| I/O(接口) | Lan | 2*RJ45（Gigabit Ethernet） |
| USB | 4*USB2.0, 2*USB3.0 | |
| Display | 1*HDMI, 1*VGA | |
| COM | 1*RS-232/422/485(COM1) | |
| SPK | 1*Line-out | |
| Mic | 1*Mic-in | |
| Button | 1*Power button | |
| Indicator | 1*Power indicator, 1*HDD indicator | |
| Phoenix | 1*3pin Phoenix terminal power input | |
| Expansion | 1* mini-PCIe；1*SIM card slot, 4*Standard expansion slot(3*PCI & 1*PCIe x4) | |
| OS(系統) | Operating System | Windows7/8/10, Linux |
| Structure (機構) | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | 2 brackets for wall or rack mounting | |
| Dimensions | 192.5 * 230 * 193.2 mm /7.58 * 9.06 * 7.61 Inch (WxDxH) | |
| Weight | 3.81KG(N.W.) | |
| Power(電源) | DC In | DC 9-24V power supply and AC power adapter |
| Temperature & Humidity(溫/濕度) | Working Temp. | -20~ 60°C (-4°F~140°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 5% - 95% relative humidity(Non-condensing) | |
| Cert.(認證) | Safety | CE,FCC,RoHS |
| Packing(包裝) | Items | box pc,power adapter,Power cord,CD Driver |
