| Category | Descriptions | |

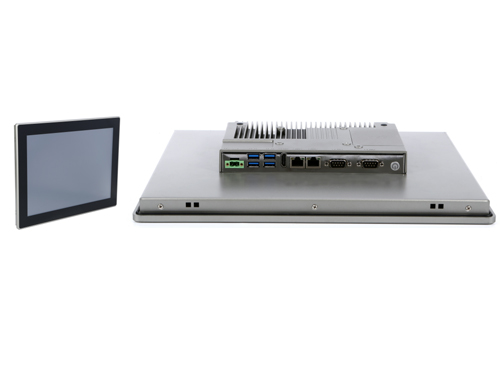

| Model | No. | YL-6041 |
| Nucleus Module | CPU | Intel? Celeron? Processor 3855U (Dual Core 2M Cache, 1.6 GHz) |
| Intel? Core? Processor i5-6200U (Dual Core 3M Cache, up to 2.8GHz) | ||
| Chipset | Intel? Skylake ULT SOC integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR4 2133MHZ 4GB (Up to 8GB ) | |
| Storage |
1*mSATA slot (16G/32G/64G/128G SSD), 1*SATA bay (500GB-6TB SSD/HDD, up to 6.0Gbps) | |
| Graphic | Integrated Intel? HD Graphics 510/520 | |
| Network | 2*Intel? Ethernet WG I211-AT PCIe GbE Controller | |
| Audio | Realtek ALC892 (Support Mic-in/Line-out , SPK of 3W) | |
| Display | LCD |
15" WXGA TFT color LCD, resolution: 1024 x 768, LCD MTBF: 50000 HRS (standard) |
| HMI | HMI panel | 5-wire resistive, Touch time: 1 million @ 250gf Force |
| I/O | Lan | 2*RJ45 lan (Gigabit Ethernet) |
| USB | 4*USB3.0 | |
| Display | 1*HDMI (Support max 3840*2160 @ 60Hz) | |
| COM | 2*RS-232/422/485 (4 more to be extended via EXT IO) | |
| Button | 1*Power Button | |
| Expansion | 1*mini-PCIe (support WiFi and Bluetooth) | |
| OS | Operating System | Windows 7/8/10, Linux |
| Structure | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | Hooks for console mount, or VESA bracket (Optional) | |
| Dimensions | 366.0*297.0*50.0 mm / 14.41*11.69*1.97 inch (WxHxD) | |
| Weight | 3.55KG (N.W.) | |
| Power | DC In | DC 9-36V power supply and AC power adapter |
| Temperature & Humidity | Working Temp. | -20~ 65°C (-22°F~149°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 10% - 95% relative humidity (Non-condensing) | |
| Cert. | Protection level | IP51 |
| Safety | CE, FCC, RoHS | |
| Packing | Items | panel pc, power adapter, power cord, CD driver |
