| Category | Descriptions | |
| Model | No. | YL-3005 |
| Nucleus Module | CPU | Intel? Celeron? J1900 2.0GHz Quad Core |
| Chipset | Intel?Bay Trail D/I/M SOC integrated chipset | |
| BIOS | AMI SPI Flash ROM | |
| RAM |
1*204pin SODIMM memory slot, support single channel 1600/1333MHz DDR3L /1.35V memory, Max 8GB | |
| Storage | 1*mSATA bay (64/128/256/512GB SSD) | |
| Graphic | Intel? HD Graphics | |

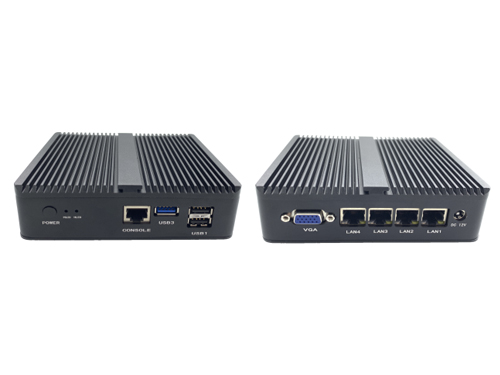

| I/O | Lan | 4*RJ45 lan (Gigabit Ethernet), support Wake-On-LAN/PXE |
| 1*RJ45 lan for console | ||
| USB | 1*USB3.0, 2*USB2.0 | |
| Display | 1*VGA | |
| COM | 1*CISCO standard serial interface | |
| LED | 1*hard drive indicating light | |
| 2*power indicating light | ||
| Button | 1*Power Button | |
| SIM | 1*SIM card slot for 3G/4G | |
| Expansion | 1*mini-PCIe(support wifi/bluetooth etc) | |
| OS | Operating System | Windows 7/8/10, Linux |
| Structure | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | bracket for wall-mounting(optional) | |
| Dimensions | 128.0*128.0*41.0 mm / 5.04*5.04*1.61 inch (WxHxD) | |
| Weight | 0.6KG (N.W.) | |
| Power | DC In | DC 12V |
| Temperature & Humidity | Working Temp. | -20°C ~ 65°C (-4°F ~ 149°F) |
| Storage Temp. | -40°C ~ 80°C (-40°F ~ 176°F) | |
| Working Humidity | 5% - 95% relative humidity (Non-condensing) | |
| Cert. | Safety | CE, FCC, RoHS |
| Packing | Items | pc, power adapter, power cord, CD driver |
