| Category | Descriptions | |

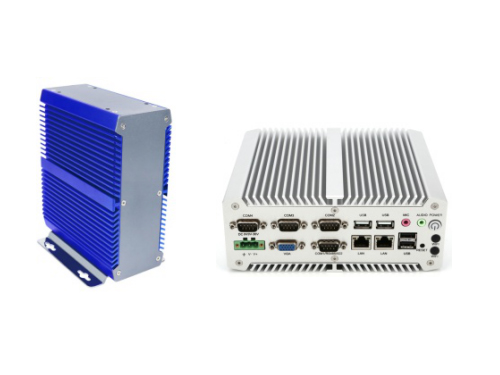

| Model(型號) | No. | YL-3001 |
| 核心模塊 Nucleus Module | CPU | Intel? Celeron? 1037U (Dual Core 2M Cache, 1.8 Ghz) |
| Intel? Core? i5-3317U (Dual Core 3M Cache, up to 2.6Ghz) | ||
| Chipset |
Intel? NM70 Mobile Chipset/Intel? QM77/QM67 express integrated chipset | |
| BIOS | AMI 64Mbit Flash ROM | |
| RAM | Onboard DDR3 1600MHZ 2GB(4GB Optional) | |
| Storage |
1*SATA bay(7+15P 500G-6T 2.5" HDD, 32G/64G/128G/256G 2.5" SSD),optional | |
| Graphic |
Integrated Intel? HD Graphics for 3rd Generation Intel? Processors Integrated Intel? HD Graphics 4000 | |
| Network | 2*Intel? Ethernet Controller 82583V Gigabit lan | |
| Audio | Realtek ALC662 (6 sound channel) | |
| I/O(接口) | Lan | 2*RJ45 (Gigabit Ethernet) |
| USB | 4*USB2.0, 2*USB2.0 in-built | |
| Display | 1*VGA | |
| COM | 1*RS-232/422/485(COM1), 3*RS-232 (COM2-4) | |
| SPK | 1* Audio-out | |
| MIC | 1*Mic-in | |
| Button | 1*Power Button | |
| Expansion | 1*mini-PCIe(support WiFi and Bluetooth) | |
| OS(系統) | Operating System | Windows Xp/7/8/10, Linux |
| Structure (機構) | Dissipation | high-quality profile case for quick heat dissipation |
| Housing | aluminum alloy | |
| Bracket | 2 brackets for wall or rack mounting | |
| Dimensions | 185 * 161 * 73 mm / 7.28 * 6.34 * 2.87 Inch (WxDxH) | |
| Weight | 2.21KG(N.W.) | |
| Power(電源) | DC In | DC 9-36V power supply and AC power adapter |
| Temperature & Humidity(溫/濕度) | Working Temp. | -40°C~ 65°C (-40°F~149°F) |
| Strorage Temp. | -40°C~ 85°C (-40°F~185°F) | |
| Working Humidity | 10% - 95% relative humidity(Non-condensing) | |
| Cert.(認證) | Satety | CE, FCC, RoHS |
| Packing(包裝) | Items |
pc, power adapter, power cord, CD driver & 2 Brackets |
