Project Background

      In order to expand the retail business operation channels, vigorously develop bank retail business, provide customers with more convenient, high-quality and satisfactory services, create regional characteristics, and create a "community bank" as the goal, actively explore new business models of community retail banking, relying on community banking services The system carried out vigorous community bank activities to meet the personalized financial service needs of community customers, effectively improved the quality of bank services to the community, and laid the foundation for the long-term development of bank retail business.

      During the construction of the bank's "community bank" outlets, routers, switches, wireless AC, AP and other equipment were exclusively provided.

      Conventional community banks are different from traditional bank outlets. They do not involve high-counter and cash business personnel, and are replaced by more self-service equipment, such as self-service cash machines, VTM machines, etc.; but there are also office workers in community banks , And the office staff here should be a service consultant accurately, his job is mainly to guide users how to use self-service equipment for business processing, to market financial products to community customers, and to collect personalized needs of community customers, so as to be more flexible To adjust the services of the community bank, in a sense, the community bank is a financial convenience store opened beside the common people, which can establish better relationships for the community's customers, based on the specific networking of the community bank's own characteristics. The requirements are as follows:

1. The outlets of community banks are small, but the requirements for high performance and high stability of the network are higher. Therefore, the network equipment must have high integration capabilities, such as: routers at the outlets use integrated routers and routers. And has 3G\4G access capability.

2. Community bank outlets need to deploy a wireless network to meet the needs of outlet mobile product marketing and wireless Internet access for guest users, and need to adopt the centralized networking method of AC controller plus (fat\thin) AP; "outlet mobile terminal product marketing" application Deploy two sets of physically separated wireless networks with the "Guest User Wireless Internet Access" application.

3. The community bank provides wireless Internet access services for guest users, which allows overseas guest users to use their own wireless terminals to provide related Internet services and improve customer service satisfaction. In order to ensure the physical isolation of the Internet from the production network, the local Internet is used. Outgoing access, and can achieve the requirements of guest identity authentication, centralized audit of online logs, online behavior control management.

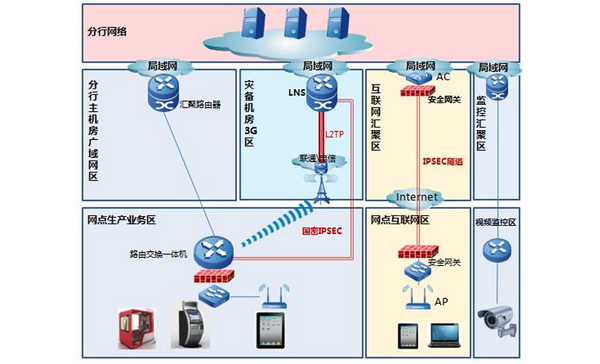

According to application scenarios and security requirements, the overall network structure is divided into the following four logical areas of the network: branch Internet central area, branch production network service area, branch Internet service area, security monitoring area;

Branch Internet Center: The branch Internet center provides unified management and policy distribution of WLANs at all outlets through the deployment of AC, as well as centralized management and monitoring of APs at all outlets. At the same time, the establishment of a VPN tunnel from the branch to the head office realizes the security encryption of data transmission such as terminal access authentication, mobile terminal initialization registration, and AC out-of-band management of the entire bank. Branches and business outlets use unified branch Internet outlets to achieve centralized user management and behavior auditing across the bank.

Internet service area: The WIFI access area is where wireless APs are deployed at each outlet, and is issued through the unified management and strategy of the branch AC to achieve wireless network access of the outlet all-in-one machine, intelligent terminal, and PAD. At the same time provide visitors with limited Internet access services. The gateways of terminals in each network segment are located locally. The terminal's data access adopts the local AP forwarding method. Through the Internet VPN tunnel or dedicated line with the branch, the unified Internet outlet control audit and user positioning of the entire bank are realized.

Production network service area: The production network service area is an important business area of the entire network. In addition to the existing self-service terminals, the entire area also provides self-service terminals such as VTMs and deposit machines. At the same time, the production network service area can also provide real-time business introduction and financial information to customers through multiple media deployed at the outlets. The gateway of each network terminal is located in the local firewall, and the data access of the terminal is realized through a dedicated line between the network point and the branch or a 3G VPDN link.

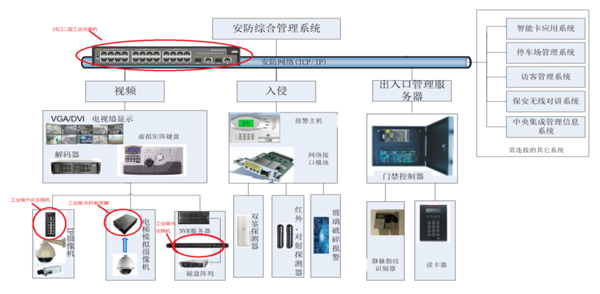

Security monitoring area: Security monitoring area is one of the important protection measures for the safety of the entire network. This area needs to capture real-time monitoring information of important information points, and can provide security alerts under special circumstances. The network construction in this area is carried out by branches according to the actual situation and in compliance with relevant technical specifications of the head office.

Through the link link, the monitoring data is returned to the monitoring center, and the front-end image data is monitored and managed

The overall plan has the following characteristics:

WIFI hotspot: The terminal device of the community bank interactive marketing solution can be used as a WIFI hotspot to provide customers with WIFI hotspot Internet access or wireless access to other terminal services, saving investment in community bank construction and solving the need for small-scale wireless coverage.

Local website: The community bank interactive marketing solution provides local website services. While providing WIFI hotspot services, it also provides content on-demand websites locally to enhance marketing effects; website content is remotely updated and unified management. Soft terminal: The interactive marketing solution of the community bank provides a client that can be installed on a tablet, so that various PADs can be used as a small all-in-one machine, which is convenient and flexible, and effectively solves the needs of mobile marketing.

Supervisory client: The supporting supervisory tool software "Easy Dispatch" that can be installed on the mobile phone can solve the needs of screen playback inspection, business hall layout inspection, staff attendance, mobile office, and assignment management.

PoE: Power supply for terminals such as AP, monitoring, and voice, based on time control PoE port power supply, flexible power distribution, provide overload protection, improve business security, and significantly reduce energy consumption. Help users build "green" community banks.
